Mobile TeleStacker

Mobile TeleStacker

Smistack is dedicated to mobile bulk materials handling equipments design and smart fabrication, the products include mobile stacker, track mounted stacker, truck unloader, and tracked reclaim stacker etc.

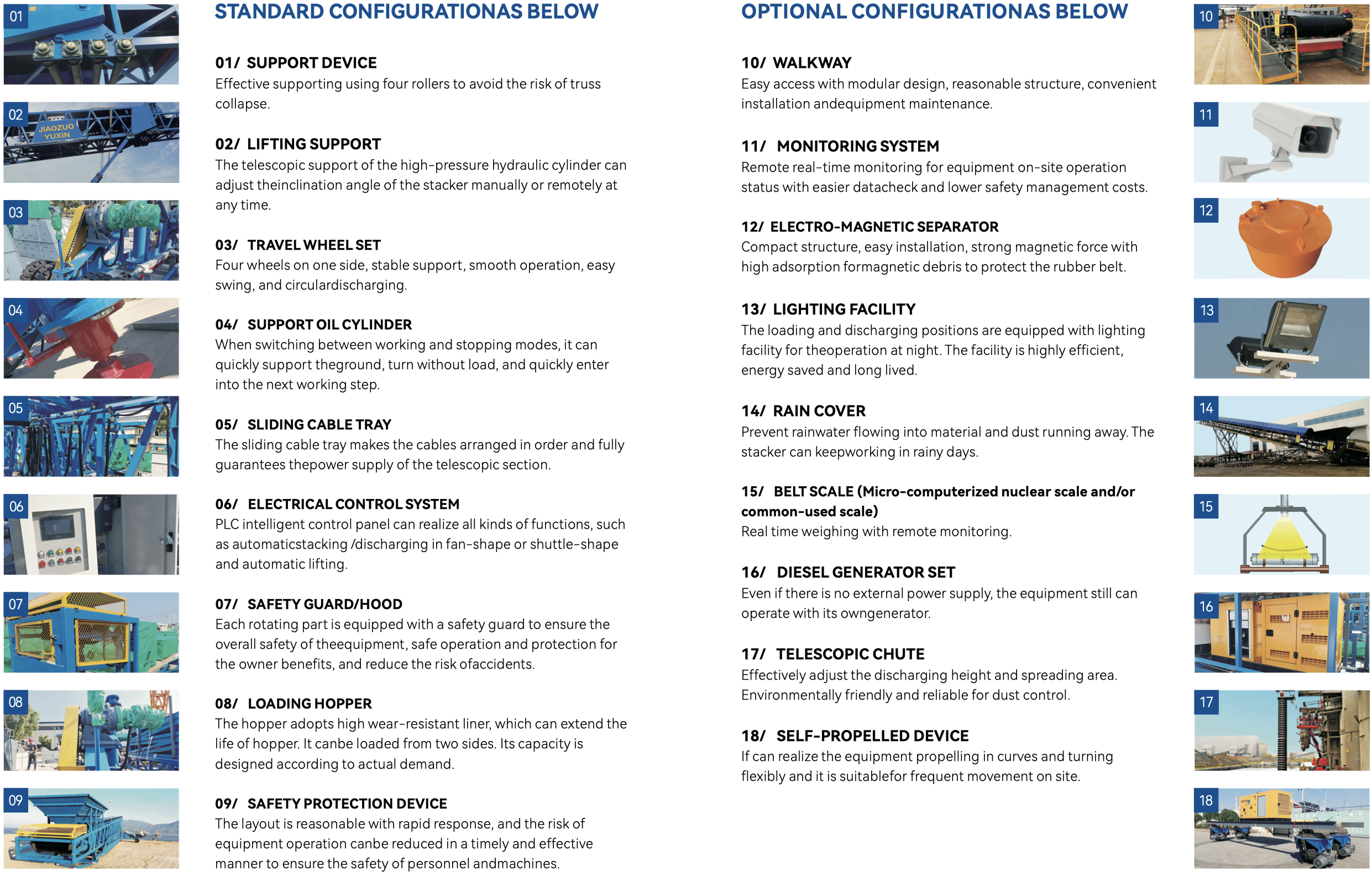

Features

Stockpile Capacity / Easy Movement / Flexibility / Automation / High Quality Material / Electric Drive/Genset / Tracked or Wheels

Order free samples Request a Quote

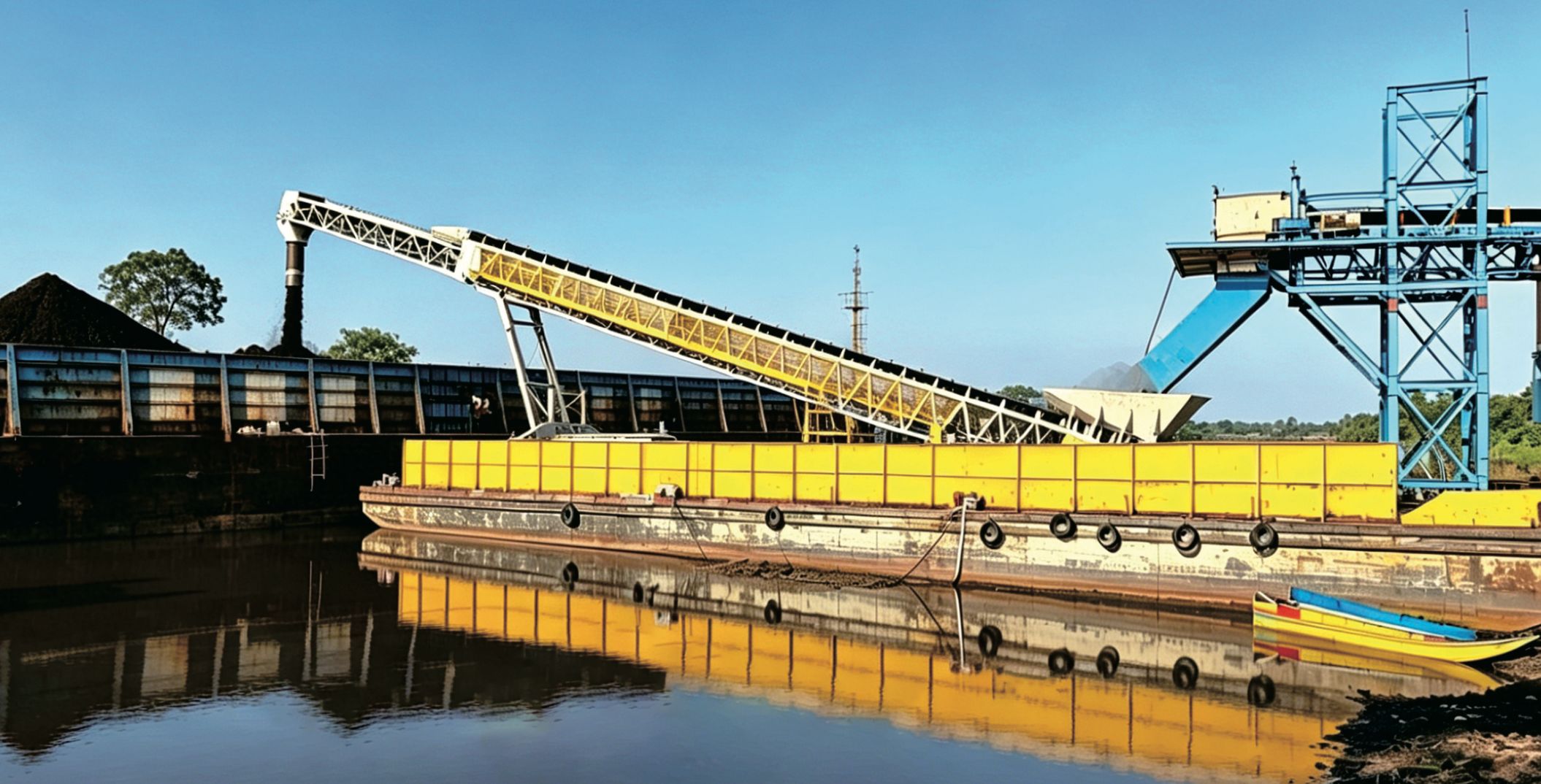

Smistack Telestacker is the basic need for stacking high and ship loading, The portable and mobile design allow the owner to stock more capacity and fast loading ship in the port.

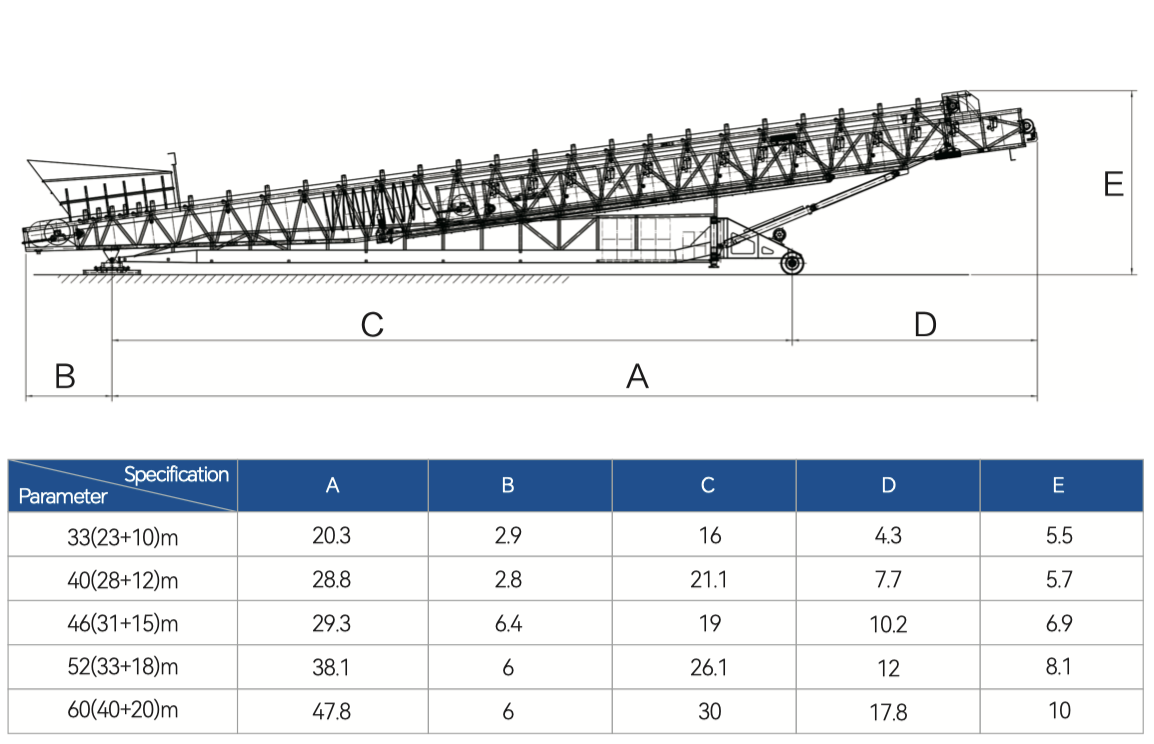

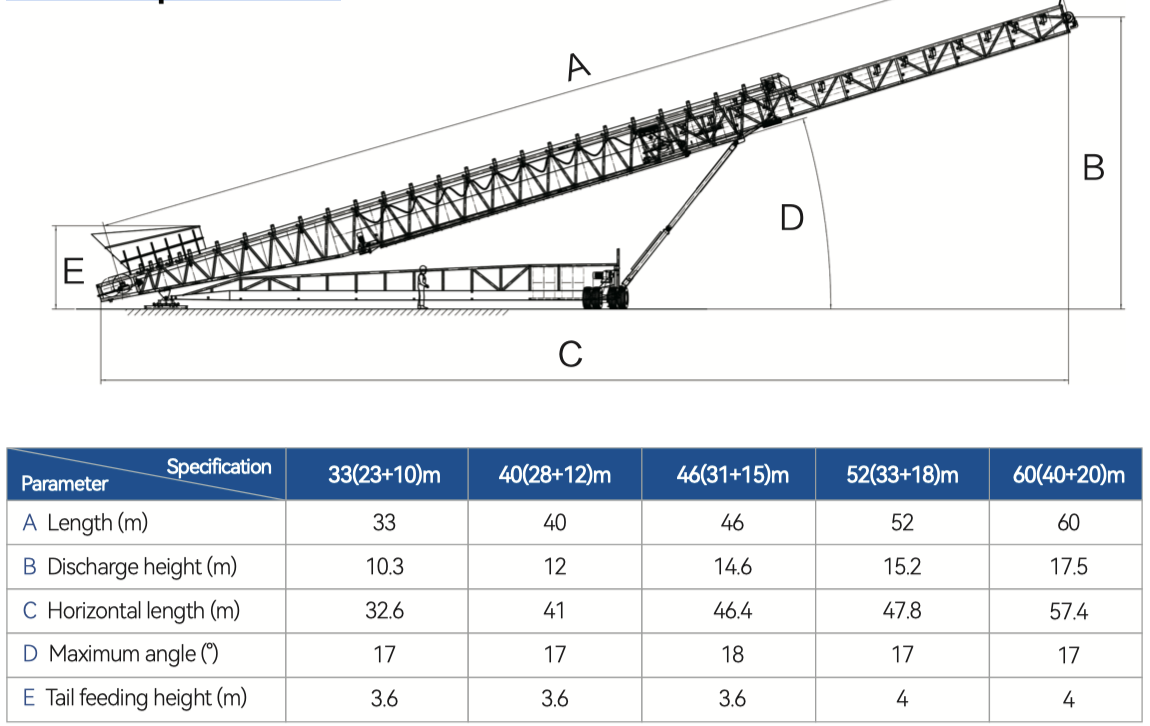

Technical Specs:

Model	Belt Length	Belt Width	Max Discharge Height	Capacity
SM1033	33m	1000mm	10m	600tph
SM1240	40m	1200mm	12-14m	1200tph
SM1246	46m	1200mm	12-14m	2000tph
SM1458	58m	1400mm	18-20m	3000tph

Note: Above data is based on limestone density 1.6t/m3,pls contact us for updated detail version or customerized.
