Mobile Reclaimer Stacker

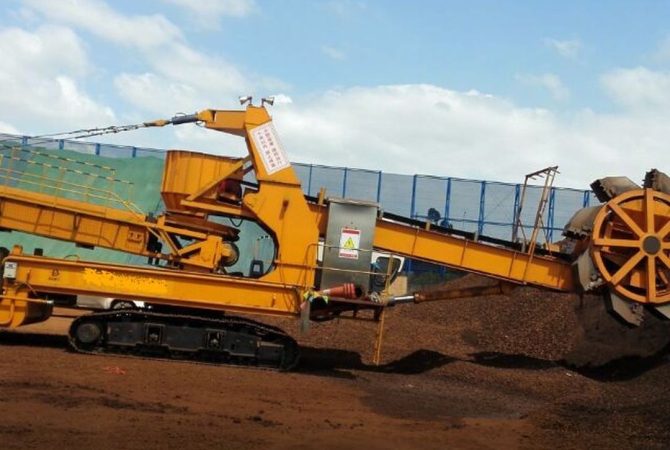

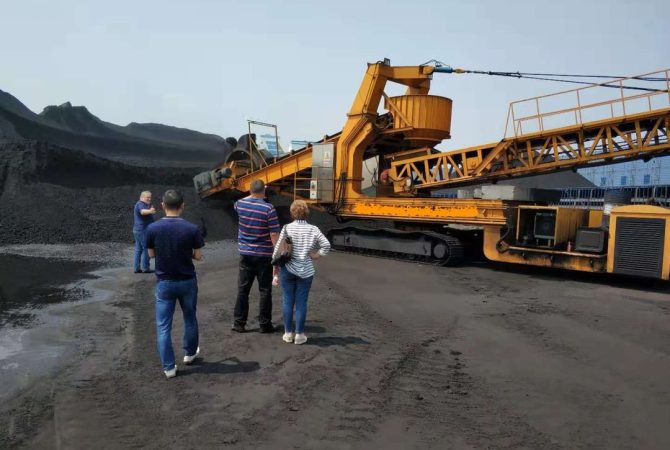

Moontain tracked combined stacker / reclaimers with bucket-wheel boom are primarily employed where small or medium material flows are to be reclaimed and then later stacked by the same machine, working at same stime.
The mobile reclaimer stacker allows the operator to directly reclaim materials through bucket wheel onto belt conveyors/stacker-reclaimer systems. The fully mobile units allow a controlled feed of material onto the conveyor system, allowing either a emergency ‘back up’ system for stacker/reclaimers or the ability to blended material on the intake conveyor system.
Technical Specifications
| No. | Item | Technical Data | ||
| 1 | Model | TRS-300 | TRS-500 | TRS-700 |
| 2 | Capacity | 300 M3/h | 500 M3/h | 500 M3/h |
| 3 | Bucket Qty | 8 pcs | 8 pcs | 8 pcs |
| 4 | Bucket Volume | 0.1 m3 | 0.15 m3 | 0.18m3 |
| 5 | Bucket Speed | 8 rpm | 9 rpm | 10 rpm |
| 6 | Reclaimer Arm | L=9.6m R 11.5m | R 11.5m | L=10m Work 15m R 11.5m |
| 7 | Max Reclaimer Height | 6m | 6m | 7m |
| 8 | Stacker Fix Length | 10 m | 12m | 12m |
| 9 | Telescopic Arm Length | 5m | 6m | 6m |
| 10 | Discharge Height | 6 m | 3.3m-6.5 m | 8m |
| 11 | Total Power | 120-150 KW | 150-200 KW | 200-270KW |
| 12 | Track Speed | 3-12m/min | 3-12m/min | 6m/min |
| 13 | Track Power | Hydraulic motor | Hydraulic motor | Hydraulic motor |
| 14 | Weight | 65 Tons | 75Tons | 85Tons |
| 15 | Dimension | 20*3.5*6m | 20*3.5*6m | 27*4.5*7.5m |
| Note: Above data would be adjusted according to technical final design without notice. | ||||
Complete on-site mobility including tracks wheels and rail mounted to suit all ground conditions.
Hydraulic folding head section allowing for compact road transportation.
Unrivalled mobility and flexibility when in operation.
High specification machine designed for ease of maintenance commanding an excellent resale value at project conclusion.
Heavy duty design and manufacture.
Belt weigher linked to PLC to enable blending of material
ntegrated Diesel Electric Generators/ Diesel Engines
Foundation work at low level or elevated feed in heights
Ability to handle complete range of materials such as Coal, Grains, Fertilisers, Ore’s (Iron, copper, gold, bauxite), Aggregates, Woodchips, wood pellets, sulphur, cement clinker and many more….
Reclaiming directly from stock piles.
Reclaiming to feed conveyor systems which load ships and rail wagons.
Fully customized to meet the needs of the application
